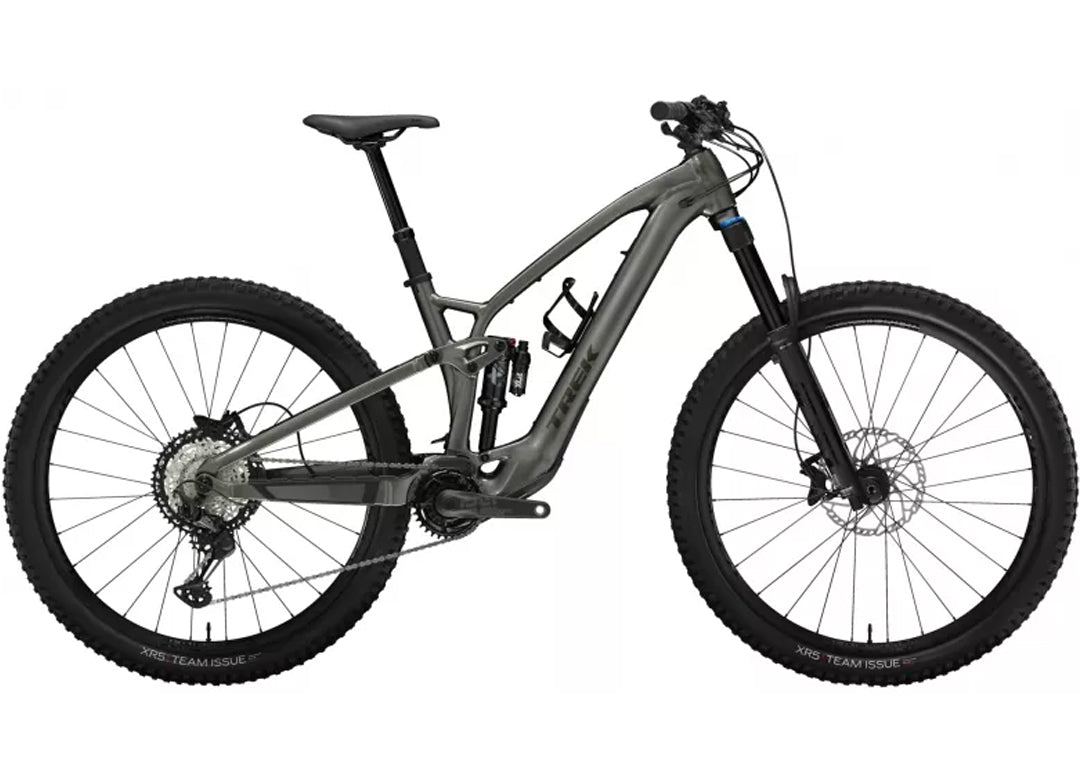

Fuel EXe 8 XT

Part # 5300090
$6,599.99 $6,599.99
Shipping calculated at checkout.
Select Trek & Giant bikes are available for in-store pickup only. Shippable bikes incur an oversize shipping fee.
Product Availability

Product Details

Fuel EXe 8 is a trail-ready aluminum electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels, and a Shimano XT 12-speed drivetrain.


  • You get all the tech of our top-end light e-MTB without a price tag that makes you say ouch
  • Its upgraded FOX suspension package smooths the trail while 12-speed Shimano XT drivetrain shifts clean under load
  • Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
  • The integrated display, charging port, and controls are simple to use, sleek, and intuitive
  • You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control

Technical Specifications

  • Frame- Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
  • Fork- Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
  • Shock- Fox Performance Float X, 2-position damper, 205mm x 60mm
  • Max compatible fork travel- 160mm (575mm axle-to-crown)


  • Wheel front- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel rear- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
  • Skewer rear- Bontrager Switch thru axle, removable lever
  • Tire- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • Tire part- Bontrager TLR sealant, 6oz
  • Rim strip- Bontrager TLR
  • Max tire size- Frame: 29x2.50", Fork: See manufacturer


  • Battery- TQ 360Wh
  • Computer- TQ LED display with Bluetooth & ANT+ connectivity
  • Motor- TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power


  • Shifter- Shimano XT M8100, 12 speed
  • Rear derailleur- Shimano XT M8100, long cage
  • Crank- E*thirteen E*spec Plus, 165mm length
  • Chainring- E*thirteen E*spec, 32T alloy ring, 55mm chainline
  • Cassette- Shimano XT M8100, 10-51, 12 speed
  • Chain- Shimano Ultegra/XT M8100, 12 speed
  • Max chainring size- 1x: 34T, min 30T


  • Saddle- Bontrager Arvada, hollow chromoly rails, 138mm width
  • *Seatpost- Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length. Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length. Size: L, XL
  • Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
  • Handlebar- Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
  • Grips- Bontrager XR Trail Elite, nylon lock-on
  • Stem- Bontrager Elite, 35mm, 0 degree, 45mm length
  • Headset- Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • Brake- Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Brake rotor- Shimano RT66, 6-bolt, 203mm
  • Rotor size- Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer


  • Electronics- TQ 4A charger


  • Weight- M - 20.10 kg / 44.32 lbs (with TLR sealant, no tubes)
