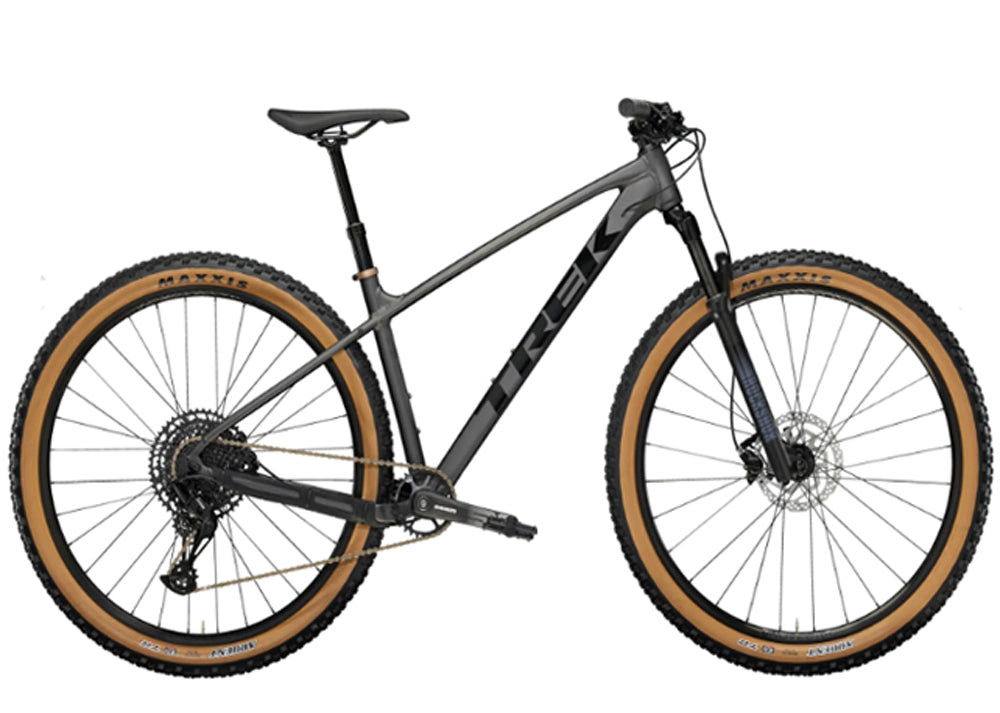

Trek Marlin 8
TREK BIKES CAN BE PURCHASED ONLINE FOR LOCAL PICKUP ONLY!
Marlin 8 is a race-worthy mountain bike that won’t break the bank. The smooth, lightweight RockShox fork, tubeless ready wheels, and wide-range 1x drivetrain make this model the best choice for new riders who want a fast cross country hardtail that will hold its own against our higher-end race bikes.
It's right for you if...
You want a race-ready mountain bike with upgrades on the parts that make a big difference in performance, like a lighter, higher quality suspension fork, wide-range 1x drivetrain, and tubeless ready wheels.
The tech you get
A light frame with internal cable routing, a smoother-feeling RockShox Judy Silver fork with a Solo Air spring and TurnKey hydraulic lockout, Shimano hydraulic disc brakes, tubeless ready Bontrager Kovee wheels, and a simple 1x12 drivetrain that ditches the front derailleur for less clutter and easier operation. The wide-range 11-50 cassette gives you all the gears you need for clawing up climbs and blazing down descents.
The final word
The tubeless ready wheels, RockShox suspension, wide range of gearing, and quality parts make it an awesome choice for new mountain bikers who know they want a serious bike for their money. It’s fully capable of taking on big trail adventures and XC races.
Why you'll love it
- This is one of our most popular bikes for good reason. You get all the value, plus all the versatility—it's a totally race-worthy mountain bike, with rear rack mounts if you use it for commuting too
- The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
- Setting your wheels up tubeless reduces the overall weight of your bike and the chances you’ll get a flat
- The 1x drivetrain gives you all the gears you need and none you don’t
- Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
Specifications
*spec applies to all sizes unless otherwise noted
Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
---|---|
*Fork | Size: XXS , S , M , ML , L , XL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 100mm travel |
Size: XS RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 80mm travel |
|
Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Hub front | Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR |
---|---|
Hub rear | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
*Rim | Size: XXS , XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve |
Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|
Spokes | 14g stainless steel |
*Tire | Size: XXS Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 26x2.40'' |
Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' |
|
Size: M , ML , L , XL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
|
Size: M , ML , L , XL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20'' |
|
*Rim strip | Size: XS , S ENG SPEC - RIM STRIP GLORY WHEEL 27.5in x 25mm PV/RED PLASTIC |
Size: M , ML , L , XL ENG SPEC - RIM STRIP GLORY WHEEL 29in x 25mm PV/RED PLASTIC 1RTG019014 |
|
Max tire size | 29x2.20" (XS & S: 27.5x2.4") |
Shifter | SRAM SX Eagle, 12 speed |
---|---|
Rear derailleur | SRAM SX Eagle |
*Crank | Size: XXS SRAM SX Eagle, 30T steel ring (49mm chainline), 155mm length |
Size: XS , S , M SRAM SX Eagle, 30T steel ring (49mm chainline), 170mm length |
|
Size: ML , L , XL SRAM SX Eagle, 30T steel ring (49mm chainline), 175mm length |
|
Bottom bracket | Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
Chain | SRAM SX Eagle, 12 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x/2x: 34T, 3x: 42T |
Saddle | Bontrager Arvada, steel rails, 138mm width |
---|---|
*Seatpost | Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
*Handlebar | Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
Size: S , M , ML , L , XL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length |
Size: XXS , XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
Size: XL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Headset | Semi-integrated, 1-1/8'' |
Brake | Shimano MT200 hydraulic disc |
*Brake rotor | Size: XXS , XS , S , M , ML , L , XL Shimano RT26, 6-bolt,160mm |
Size: L , XL Shimano RT26, 6-bolt,180mm |
