Arroyo C5 HMB Elite

Part # G3715
$3,999.00 $3,999.00
Shipping calculated at checkout.
Select Trek, Giant, & Yuba bikes are available for in-store pickup only. Shippable bikes incur an oversize shipping fee.
Store Availability

Product Details

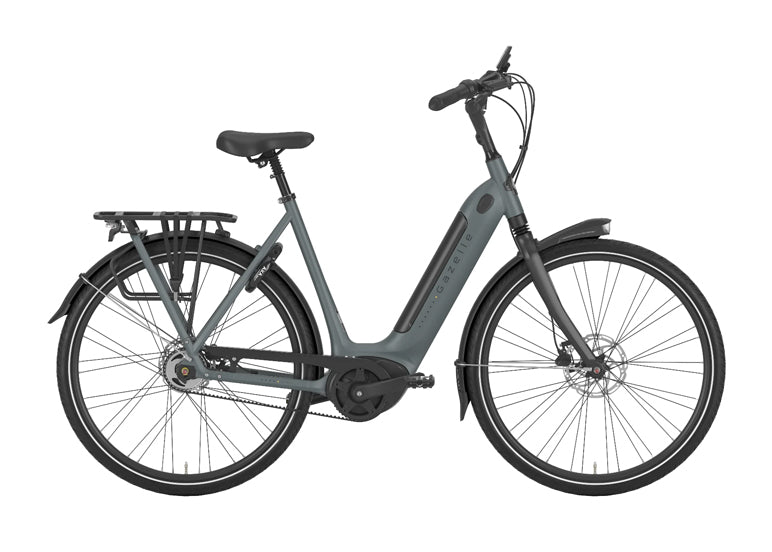

Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.


  • High braking power through hydraulic disc brakes
  • Power reserves for headwinds and effortless climbing
  • Low-maintenance Gates belt drive and special Shimano e-bike internal gear hub
  • Leather grips and a sporty comfortable saddle exude luxury

Product Specifications

  • Frame- Stable, lightweight hydro-formed aluminum frame with
  • 68.5° headset angle and 69.5° saddle tube angle for relaxed
  • and comfortable riding. This is a low-step and spacious frame,
  • single tube and lovely integrated cables
  • Fork- Aluminum, springing in headset, lightweight w/ 40mm travel
  • Rear Shock- None
  • Rims/Wheels- RODI Viper
  • Hubs- Shimano Nexus, 5 speeds, hub brake
  • Spokes- Stainless steel, extra strong
  • Tires- Schwalbe Energizer Active Plus, 47-622
  • Crankset- 46, Gates CDX
  • Chain- Gates CDX belt drive, with Centertrack
  • Front Derailleur- N/A
  • Rear Derailleur- 5-speed Shimano Nexus
  • Cassette/Rear Cogs- Gates CDX 34
  • Shifters- Shimano Nexus 5
  • Handlebars- Aluminum, comfort curved model
  • Stem- Steplessly adjustable
  • Brake Levers- Tektro
  • Brakes- Brake system front: disc brake with hydraulic control; Tektro HD-T280, 2 piston 180 mm, Brake system back: Disc brake with hydraulic control; Tektro HD-T280, 2 piston 160 mm
  • Pedals- Included
  • Saddle- Selle Royal Essenza Plus
  • Seat Post- Sprung
  • Motor- Bosch Performance Line (75Nm), 36V
  • Battery- Low-step: Integrated into frame 500wh
  • Display/Controller- Bosch Intuvia 100
  • Max Assisted Speed- 20mph (Class 1)
  • Charger- 4 Ah
  • Accessories & Extras- Lights front: Gazelle Fendervision, LED headlamp, on/off switching via display 50 lumen, Light back: Spanninga Brasa, LED battery supply, on/off switching via display, Lock type: AXA Defender, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
