  • Trek Checkout Sl 5 :Dark Star/Dark Web:
  • Trek Checkout Sl 5 :Dark Star/Dark Web:
Trek

Checkout Sl 5

Part #
$5,799.99
$5,799.99
Shipping calculated at checkout.
Color
Size
THIS PRODUCT CANNOT BE SHIPPED. YOU MUST COME TO OUR RETAIL STORE FOR DELIVERY.

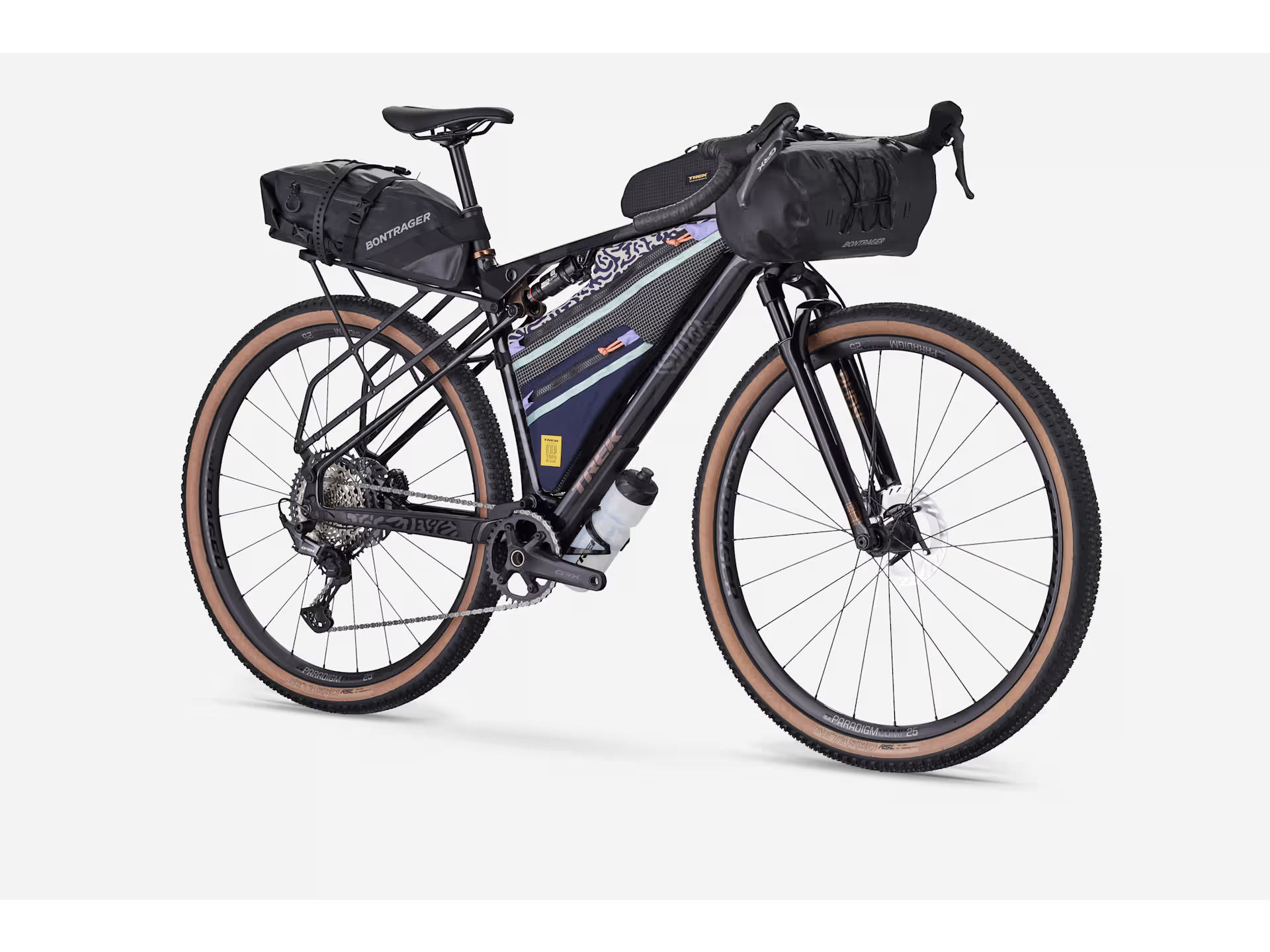

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post. Click here for more details.

*Please note - spec applies to all sizes unless listed separately

Frame
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
Fork
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
Shock
RockShox SIDluxe Ultimate 3P, 170mmx27.5mm

Weight
ML - 11.97 kg / 26.39 lbs (with TLR sealant, no tubes, excluding rear rack)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter

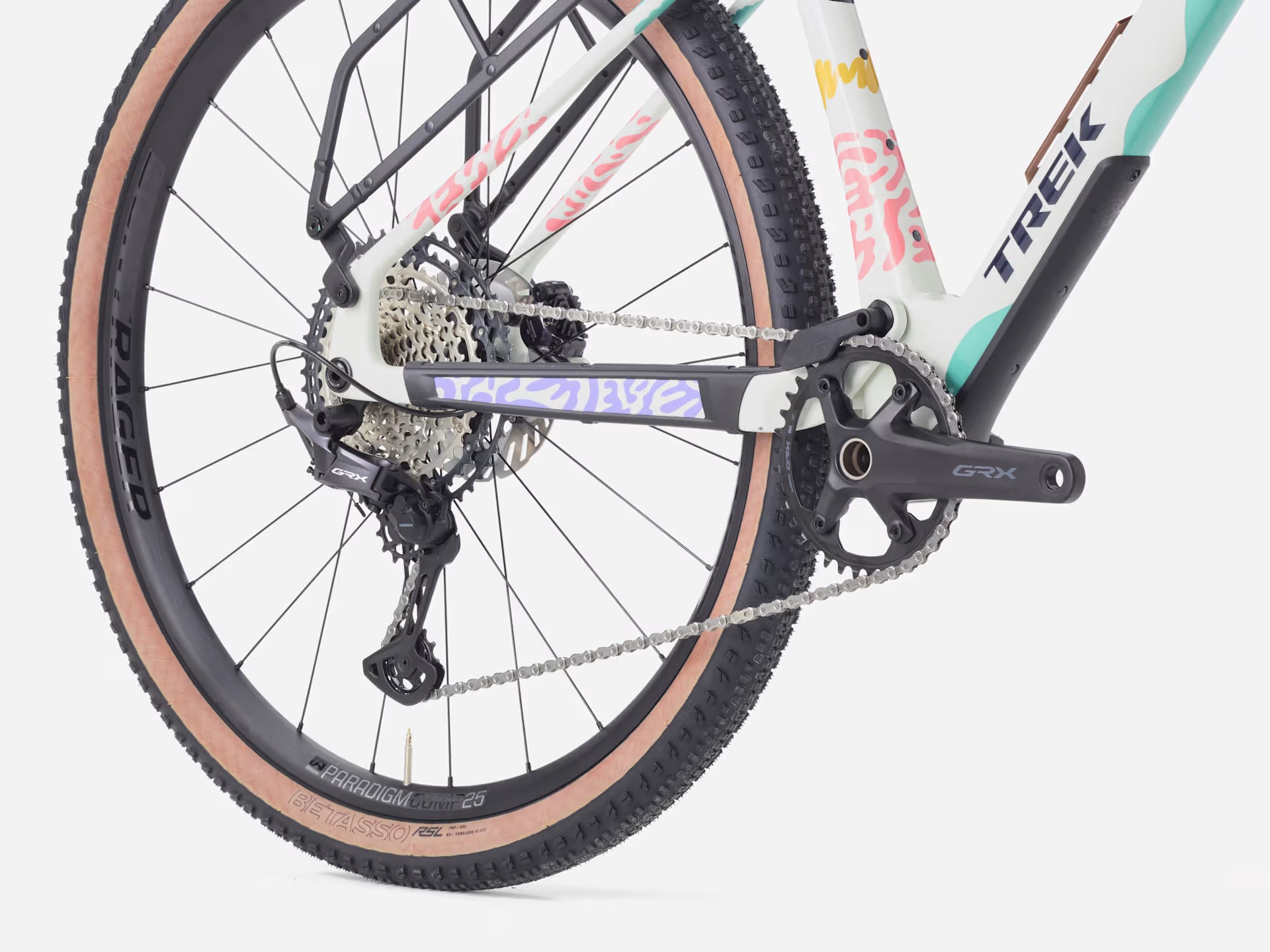

Shimano GRX RX820, 12 speed
Rear derailleur
Shimano GRX RX822, 51T max cog
*Crank
Size: S
Shimano GRX RX610, 38T, 160mm length
Size: M, ML
Shimano GRX RX610, 38T, 170mm length
Size: L, XL
Shimano GRX RX610, 38T, 172.5mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano XT M8200, 10-51, 12 speed
Chain
Shimano Ultegra/XT M8100
Max chainring size
1x: 38T

Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55mm
Tire part
Bontrager TLR sealant, 6oz
Rim strip
Bontrager TLR
Max tire size
56mm/2.20" (as measured, see manual for details)

Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
TranzX JD-YSI36, 100mm travel, internal routing, 31.6mm, 328mm length
*Handlebar
Size: S
Bontrager GR Checkout, 42cm
Size: M
Bontrager GR Checkout, 44cm
Size: ML, L
Bontrager GR Checkout, 46cm
Size: XL
Bontrager GR Checkout, 48cm
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: ML, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Brake rotor
Shimano CL800, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear

Cargo rack
Checkout rear rack
Bracket
Trek Adjustable Multi-Mount
