Trek

Fuel EX 9.7

Part # 5272089
$4,699.99
$4,699.99 $4,699.99
Shipping calculated at checkout.
Select Trek & Giant bikes are available for in-store pickup only. Shippable bikes incur an oversize shipping fee.
Product Availability
loading..

Product Details

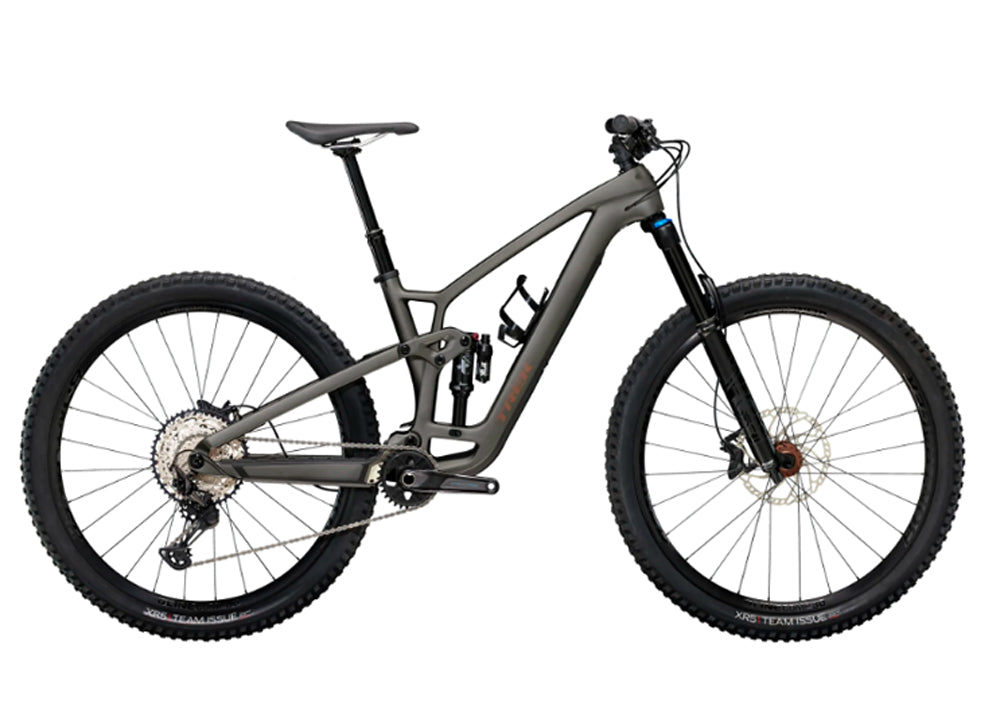

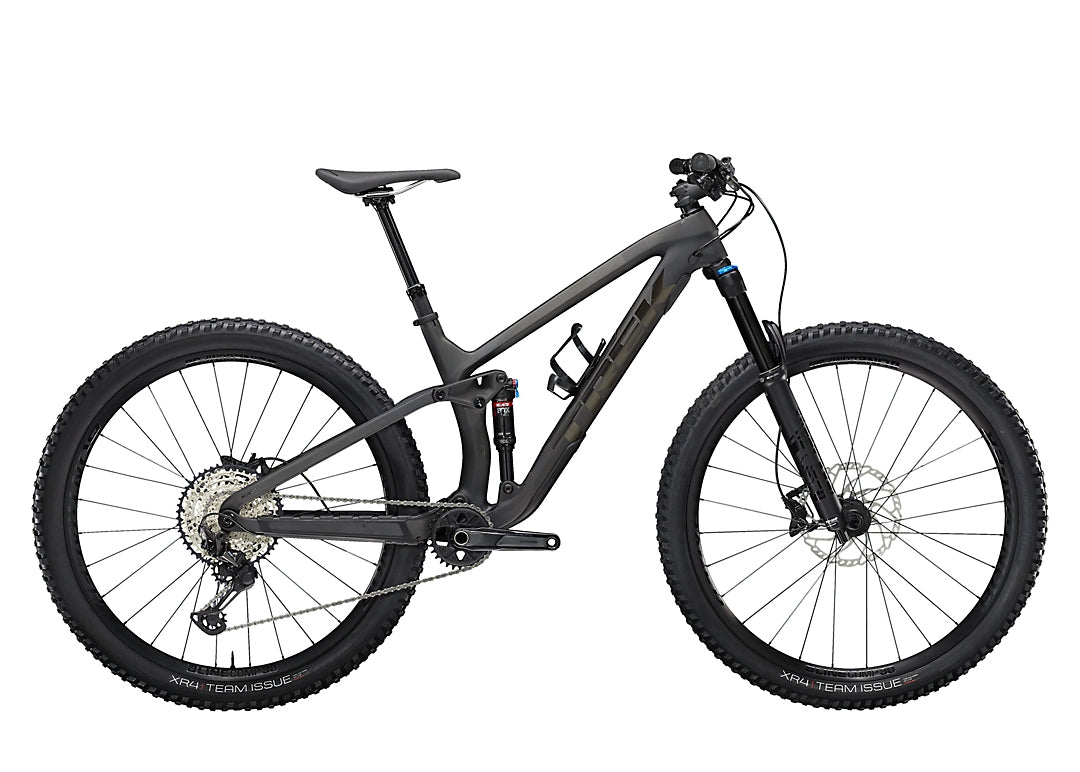

Fuel EX 9.7 is an all-mountain ripper that rolls in with the best balance of performance and pocket-friendly components, without skimping on the good stuff. It features a lightweight carbon frame, plus a cherry-picked blend of Shimano SLX and XT components that balance price and ride quality, plus, the ultra-smooth handling of a FOX 150mm front and 140mm rear suspension.

Details:

  • You're after the light weight and smooth ride of a carbon frame and want solid parts without the top-shelf price.
  • A light and stiff full carbon frame, 150mm of travel from FOX's Rhythm 36 fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A perfect blend of Shimano SLX and XT components for reliable shifting and durability on the trail. Finally, you'll find adjustable geometry and in-frame storage for keeping your setup dialed just for you.
  • Fuel EX 9.7 is an evolved trail bike for the rider who wants it all. Its lightweight carbon frame is lively and stiff, and spec'd with the perfect build thanks to a FOX suspension package and Shimano XT and SLX drivetrain for a full package deal that's build to charge.
  • You get the light and stiff feel of a carbon fiber frame, plus progressive trail geometry that's ready to handle it all
  • You'll find the right balance of price and performance with a cherry-picked blend of Shimano SLX and XT components
  • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  • Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

Wheel size:

  • Sizes X-Small – Small: 27.5-inch
  • Sizes Small – X-Large: 29-inch

Technical Specifications

  • Frame- OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
  • Fork- XS, S: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
  • S - XXL: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
  • Rear Shock- Fox Performance Float X, 2-position damper, 185mm x 55mm
  • Wheels- Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Rims- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Bottom Bracket- Shimano SM-BB52, 73mm, threaded external bearing
  • Crankset- Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
  • Shifters- Shimano SLX M7100, 12 speed
  • Rear Derailleur- Shimano XT M8100, long cage
  • Cassette/Freewheel- Shimano SLX M7100, 10-51, 12 speed
  • Chain- Shimano SLX M7100, 12 speed
  • Brakes- Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Rotors- Front: Shimano RT66, 6-bolt, 180mm
  • Rear- Shimano RT66, 6-bolt, 203mm
  • Handlebars- XS, S: Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
  • M - XL: Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
  • Tape/Grips- Bontrager XR Trail Elite, nylon lock-on
  • Stem- XS, S: Bontrager Elite, 35mm, 0 degree, 35mm length
  • M - XL: Bontrager Elite, 35mm, 0 degree, 45mm length
  • Headset- Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • Seatpost- XS, S: TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
  • M, ML: TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
  • L, XL: TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
  • Saddle- Bontrager Arvada, hollow chromoly rails, 138mm width
  • Pedals- Sold Separately
  • Accessories & Extras- Bontrager BITS Internal Frame Storage Bag
